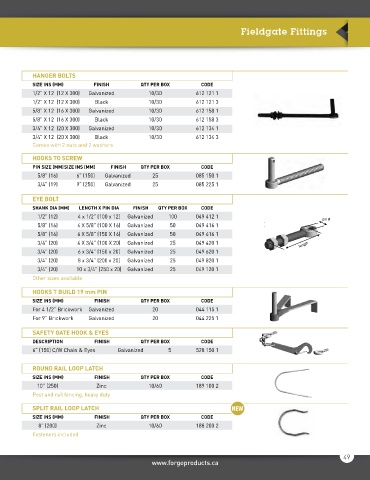

Fieldgate Fittings








            HANGER BOLTS
              SIZE INS (MM)     FINISH          QTY PER BOX         CODE
            1/2” X 12  (12 X 300)   Galvanized    10/30           612 121 1
            1/2” X 12  (12 X 300)   Black         10/30           612 121 3
            5/8” X 12  (16 X 300)   Galvanized    10/30           612 158 1
            5/8” X 12  (16 X 300)   Black         10/30           612 158 3
            3/4” X 12  (20 X 300)   Galvanized    10/30           612 134 1
            3/4” X 12  (20 X 300)   Black         10/30           612 134 3
            Comes with 2 nuts and 2 washers

            HOOKS TO SCREW
            PIN  SIZE (MM) SIZE INS (MM)   FINISH   QTY PER BOX     CODE
              5/8” (16)   6” (150)   Galvanized    25             085 150 1
              3/4” (19)   9” (250)   Galvanized    25             085 225 1

            EYE BOLT
            SHANK DIA (MM)   LENGTH X PIN DIA   FINISH   QTY PER BOX   CODE
              1/2” (12)    4 x 1/2” (100 x 12)   Galvanized   100   049 412 1
                                                                                                            pin 0
              5/8” (16)    4 X 5/8” (100 X 16)   Galvanized   50   049 416 1
              5/8” (16)    6 X 5/8” (150 X 16)   Galvanized   50   049 616 1
              3/4” (20)    4 X 3/4” (100 X 20)   Galvanized   25   049 420 1                        length
              3/4” (20)    6 x 3/4” (150 x 20)   Galvanized   25   049 620 1
              3/4” (20)    8 x 3/4” (200 x 20)   Galvanized   25   049 820 1
              3/4” (20)   10 x 3/4” (250 x 20)  Galvanized   25   049 120 1
            Other sizes available
            HOOKS T BUILD 19 mm PIN
              SIZE INS (MM)     FINISH          QTY PER BOX         CODE
              For 4 1/2” Brickwork  Galvanized     20             044 115 1
              For 9” Brickwork   Galvanized        20             044 225 1

            SAFETY GATE HOOK & EYES
              DESCRIPTION       FINISH          QTY PER BOX         CODE
              6” (150) C/W Chain & Eyes   Galvanized     5        528 150 1

            ROUND RAIL LOOP LATCH
              SIZE INS (MM)     FINISH          QTY PER BOX         CODE
              10” (250)          Zinc             10/60           189 100 2
            Post and rail fencing, heavy duty
            SPLIT RAIL LOOP LATCH
              SIZE INS (MM)     FINISH          QTY PER BOX         CODE
              8” (200)           Zinc             10/60           188 200 2
            Fasteners included
