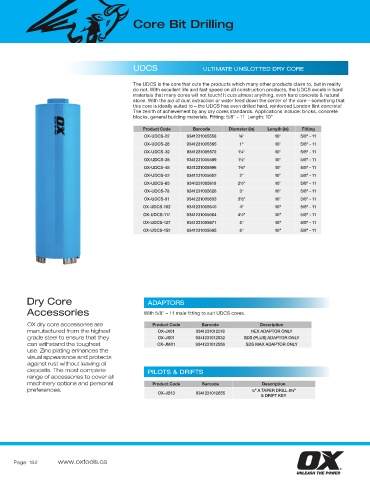

Page 192 - oxcatalog-2019

Core Bit Drilling

UDCS ULTIMATE UNSLOTTED DRY CORE

The UDCS is the core that cuts the products which many other products claim to, but in reality
do not. With excellent life and fast speed on all construction products, the UDCS excels in hard
materials that many cores will not touch! It cuts almost anything, even hard concrete & natural
stone. With the aid of dust extraction or water feed down the center of the core – something that
this core is ideally suited to – the UDCS has even drilled hard, reinforced London flint concrete!
The zenith of achievement by any dry cores standards. Applications include: bricks, concrete
blocks, general building materials. Fitting: 5/8" - 11 Length: 10"
Product Code Barcode Diameter (in) Length (in) Fitting
OX-UDCS-22 9341231005558 3/4" 10" 5/8" - 11
OX-UDCS-28 9341231005565 1" 10" 5/8" - 11
OX-UDCS-32 9341231005572 11/4" 10" 5/8" - 11
OX-UDCS-38 9341231005589 11/2" 10" 5/8" - 11
OX-UDCS-48 9341231005596 13/4" 10" 5/8" - 11
OX-UDCS-52 9341231005602 2" 10" 5/8" - 11
OX-UDCS-65 9341231005619 21/2" 10" 5/8" - 11
OX-UDCS-78 9341231005626 3" 10" 5/8" - 11
OX-UDCS-91 9341231005633 31/2" 10" 5/8" - 11
OX-UDCS-102 9341231005640 4" 10" 5/8" - 11
OX-UDCS-117 9341231005664 41/2" 10" 5/8" - 11
OX-UDCS-127 9341231005671 5" 10" 5/8" - 11
OX-UDCS-152 9341231005695 6" 10" 5/8" - 11

Dry Core ADAPTORS
Accessories With 5/8" – 11 male fitting to suit UDCS cores.

OX dry core accessories are Product Code Barcode Description
manufactured from the highest OX-JX01 9341231012518 HEX ADAPTOR ONLY
grade steel to ensure that they OX-JS01 9341231012532 SDS (PLUS) ADAPTOR ONLY
can withstand the toughest OX-JM01 9341231012556 SDS MAX ADAPTOR ONLY
use. Zinc plating enhances the
visual appearance and protects
against rust without leaving oil
deposits. The most complete PILOTS & DRIFTS
range of accessories to cover all
machinery options and personal Product Code Barcode Description
preferences. 1/2" A TAPER DRILL 81/4"
OX-JB13 9341231012655
& DRIFT KEY

Page 192 www.oxtools.ca
