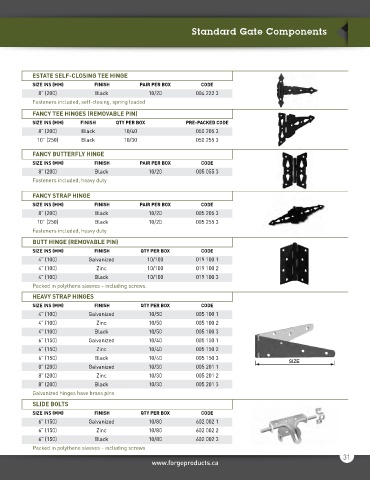

Standard Gate Components








            ESTATE SELF-CLOSING TEE HINGE
              SIZE INS (MM)     FINISH         PAIR PER BOX         CODE
              8” (200)          Black             10/20           004 222 3
            Fasteners included, self-closing, spring loaded

            FANCY TEE HINGES (REMOVABLE PIN)
              SIZE INS (MM)   FINISH   QTY PER BOX             PRE-PACKED CODE
              8” (200)      Black         10/40                   050 205 3
              10” (250)     Black         10/30                   050 255 3

            FANCY BUTTERFLY HINGE
              SIZE INS (MM)     FINISH         PAIR PER BOX         CODE
              8” (200)          Black             10/20           005 055 3
            Fasteners included, heavy duty


            FANCY STRAP HINGE
              SIZE INS (MM)     FINISH         PAIR PER BOX         CODE
              8” (200)          Black             10/20           005 205 3
              10” (250)         Black             10/20           005 255 3
            Fasteners included, heavy duty
            BUTT HINGE (REMOVABLE PIN)
              SIZE INS (MM)     FINISH          QTY PER BOX         CODE
              4” (100)        Galvanized          10/100          019 100 1
              4” (100)           Zinc             10/100          019 100 2
              4” (100)          Black             10/100          019 100 3
            Packed in polythene sleeves - including screws.
            HEAVY STRAP HINGES
              SIZE INS (MM)     FINISH          QTY PER BOX         CODE
              4” (100)        Galvanized          10/50           005 100 1
              4” (100)           Zinc             10/50           005 100 2
              4” (100)          Black             10/50           005 100 3
              6” (150)        Galvanized          10/40           005 150 1
              6” (150)           Zinc             10/40           005 150 2
              6” (150)          Black             10/40           005 150 3                      SIZE
              8” (200)        Galvanized          10/30           005 201 1
              8” (200)           Zinc             10/30           005 201 2
              8” (200)          Black             10/30           005 201 3
            Galvanized hinges have brass pins
            SLIDE BOLTS
              SIZE INS (MM)     FINISH          QTY PER BOX         CODE
              6” (150)        Galvanized          10/80           602 002 1
              6” (150)           Zinc             10/80           602 002 2
              6” (150)          Black             10/80           602 002 3
            Packed in polythene sleeves - including screws
                                                                                                                   31
